A service call gets slower when the equipment nameplate is hard to read, the disconnect is not marked, or a valve has no clear identification. HVAC labels give installers, technicians, and property owners a direct way to identify what belongs where. On a busy mechanical system, a clear engraved metal plate can prevent guesswork before it starts.
What HVAC Labels Need to Do
An HVAC label is not decorative filler. It should help someone identify equipment, understand its purpose, and locate the right component without relying on memory or handwritten notes. That matters in a home with multiple systems, a rental property, a workshop, or any building where more than one person may need access to the equipment.
The best labels are easy to read at a glance and built for the environment where they will be used. Indoor air handlers and electrical panels may stay relatively clean. Outdoor condensers, heat pumps, disconnects, and line sets deal with sun, moisture, dirt, temperature changes, and routine service. A paper sticker may be enough for a temporary notation, but a durable metal identification plate is a better fit when the marking needs to remain in place.
Clear identification also supports safer work. A technician should be able to distinguish the upstairs system from the downstairs system, the pool heater circuit from the main HVAC circuit, or the supply valve from the return valve. Labels do not replace proper training, local requirements, or manufacturer information. They do make the basic facts easier to find when time matters.
Where HVAC Labels Make the Biggest Difference
Equipment identification plates are commonly used on outdoor units, furnaces, air handlers, mini-split components, thermostatic controls, ductwork access points, electrical disconnects, and refrigerant or water lines. The right application depends on the system and how detailed the identification needs to be.
For a residential property, simple labels often do the most work. A plate marked "Upstairs Heat Pump," "Basement Air Handler," or "Garage Mini Split" helps homeowners and service professionals immediately understand which unit serves each area. If a property has separate thermostats, matching the equipment label to the thermostat location creates a more organized system.
In workshops, garages, and light commercial spaces, the wording may need to be more specific. A label can identify a unit number, zone, voltage source, circuit designation, or servicing instruction. Property managers may also use plates to distinguish equipment assigned to separate suites or buildings. The goal is not to crowd every possible detail onto one plate. It is to show the information a person needs at that location.
Valve and line identification deserve the same attention. A clearly marked shutoff can save time during maintenance and reduce the chance of turning off the wrong component. When labels are placed on pipes, conduits, or nearby mounting surfaces, use terminology that matches the language already used in the building's plans and maintenance records.
Choosing the Right Information for an HVAC Label
Start with the one question the label must answer. Is it identifying the equipment, naming the area it serves, marking an electrical component, or providing a maintenance reference? Once the purpose is clear, the layout becomes much easier to plan.
For most equipment labels, a short equipment name and location are enough. For example, "AC Unit 1 - Main Floor" is easier to scan than a long paragraph of specifications. If a unit number is already assigned, put that number first so it stands out. Use familiar abbreviations only when everyone working on the property will understand them.
More detailed plates can include several distinct fields when needed:
- Equipment name or unit number
- Area, room, suite, or zone served
- Electrical circuit or disconnect identification
- A service contact, installation date, or maintenance note
If you are ordering a personalized plate, review spelling, unit numbers, and abbreviations before submitting the order. A durable engraved plate is intended to last, so a small typo can remain part of the system for a long time.
Selecting Plate Size and Layout
Plate size should follow the amount of information and the viewing distance. A compact label works well for a disconnect box, a thermostat backboard, or a small access point. Larger HVAC ID plates are better for equipment cabinets, mechanical room doors, and outdoor units where someone may be reading the text while standing a few feet away.
Think about the available mounting space before choosing a size. Measure the flat area on the equipment or nearby wall, and leave room around vents, service panels, warning decals, and manufacturer data. Do not cover required markings or place an identification plate where it could interfere with opening a panel.
A simple layout generally reads best: one main line for the equipment name, followed by a second line for the location or designation. If the plate includes more information, group related details together rather than scattering them across the surface. For example, place the unit number and served area together, then put a circuit reference below it.
Diamond-etched metal plates offer crisp, permanent-looking identification for applications where a basic adhesive label is not enough. Diamond Etched Products provides HVAC ID plates that can be personalized for the equipment and location you need to mark. Before ordering, confirm the desired text, dimensions, and mounting approach for the surface involved.
Mounting HVAC Labels for Long-Term Readability

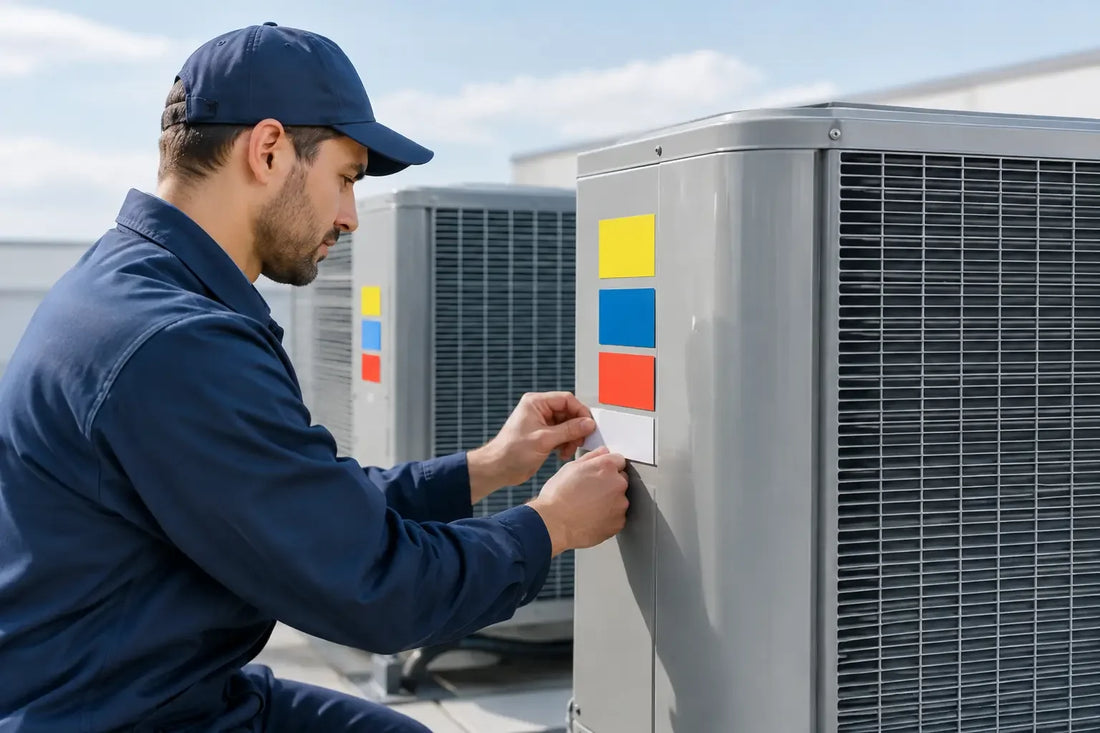

A well-made label still needs a sensible location. Install it where it can be seen without removing covers, moving stored items, or reaching around electrical components. On outdoor equipment, choose a protected flat area that remains visible during routine inspection. Avoid placing the plate directly over a seam, curved surface, drain path, or service access panel.
Mounting method depends on the plate style and the equipment surface. Adhesive-backed options can work well on clean, smooth surfaces when the label is not exposed to excessive movement or contamination. Mechanical fastening may be the better choice for metal enclosures, rough surfaces, or locations that see regular weather exposure. Follow the product's mounting guidance and avoid drilling into equipment unless you know it will not affect wiring, refrigerant lines, drainage, insulation, or the manufacturer's requirements.
Clean the mounting area before installation. Oil, dust, oxidation, and moisture can reduce adhesion and make the finished job look less professional. Once the plate is installed, stand back and read it as someone unfamiliar with the system would. If the wording is not obvious from that viewpoint, adjust the placement or reconsider the label text.
Match Labels to the Way the Property Is Used
There is no single label plan that fits every HVAC setup. A homeowner may only need a few straightforward equipment plates. A landlord may need consistent unit and zone designations across multiple properties. A tradesperson may want clear markers in a personal shop to make future service faster and keep systems organized.
Consistency is what turns individual labels into a useful identification system. If one unit is labeled by floor, label the others by floor as well. If electrical disconnects use unit numbers, match those same numbers on the equipment. Use the same naming convention on thermostats, breaker directories, and maintenance records whenever possible.
Take a few minutes to walk through the property before ordering. Write down each item that needs identification, note where the label will be mounted, and decide what a future technician needs to know first. Clear HVAC labels are a small upgrade, but they can make every inspection, repair, and seasonal check feel more organized from the start.
